Home > Products > Light Duty Caster Series
12-65kg 3110310-222

Light Duty Caster Series

Model: 3110310-222
Contact Us And Get A Quote Now
Product Details
Model

Model

Wheel Material

Wheel Material

Wheel Dia(mm)

Wheel Dia(mm)

Tread Width(mm)

Tread Width(mm)

Load Height(mm)

Load Height(mm)

Plate Size(mm)

Plate Size(mm)

Plate Size(mm)

Plate Size(mm)

Hole Size(mm)

Hole Size(mm)

Load Capacity(kg)

Load Capacity(kg)

3110310-222 PU 25/1" 13 37 38x30 29x21 4.2 12
31125310-222 PU 32/1.25" 14 44 38x30 29x21 4.2 16
3115310-222 PU 38/1.5" 17 52 46x38 36x28 5.2 20
3120310-222 PU 50/2" 22 68.5 58x47 46x35 6.5 30
3125310-222 PU 63/2.5" 22 81.5 70x52 54x36 8.5 40
3130310-222 PU 75/3" 22 95.5 70x52 54x36 8.5 50
3140310-222 PU 100/4" 25 122 80x58 63x40 8.5 65
Bracket Optional

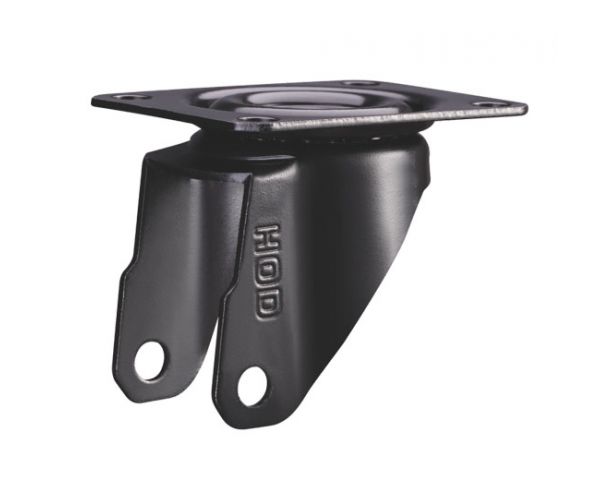

Swivel black color paint bracket code
Swivel black color paint bracket code

1 inch - 3110320

1.25 inch - 31125320

1.5 inch - 3115320

2 inch - 3120320

2.5 inch - 3125320

3 inch - 3130320

4 inch - 3140320

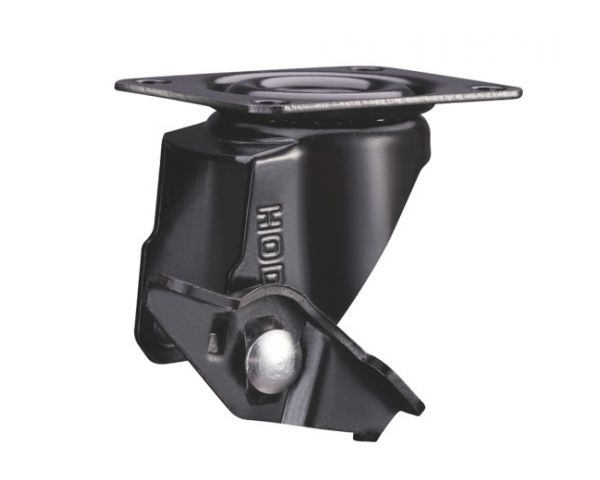

Swivel (metal) side brake black color paint bracket code
Swivel (metal) side brake black color paint bracket code

1 inch - 3110321

1.25 inch - 31125321

1.5 inch - 3115321

2 inch - 3120321

2.5 inch - 3125321

3 inch - 3130321

4 inch - 3140321

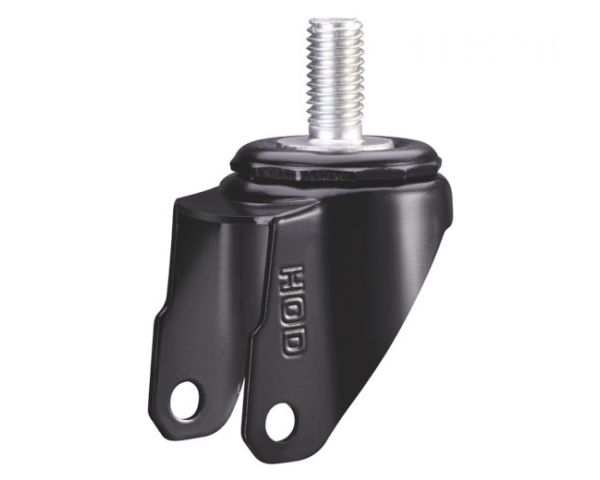

Bolt black color paint bracket code
Bolt black color paint bracket code

1 inch - 3110330

1.25 inch - 31125330

1.5 inch - 3115330

2 inch - 3120330

2.5 inch - 3125330

3 inch - 3130330

4 inch - 3140330

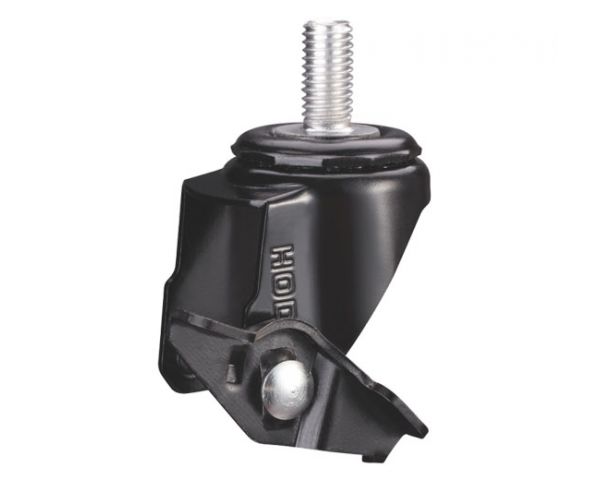

Bolt (metal) side brake black color paint bracket code
Bolt (metal) side brake black color paint bracket code

1 inch - 3110331

1.25 inch - 31125331

1.5 inch - 3115331

2 inch - 3120331

2.5 inch - 3125331

3 inch - 3130331

4 inch - 3140331

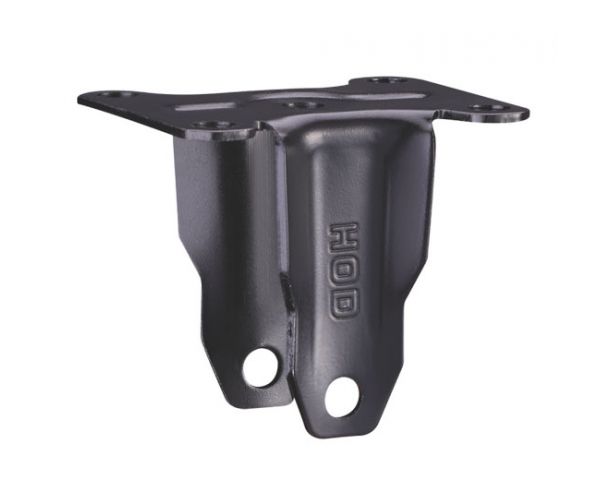

Rigid black color paint bracket code
Rigid black color paint bracket code

1 inch - 3110310

1.25 inch - 31125310

1.5 inch - 3115310

2 inch - 3120310

2.5 inch - 3125310

3 inch - 3130310

4 inch - 3140310

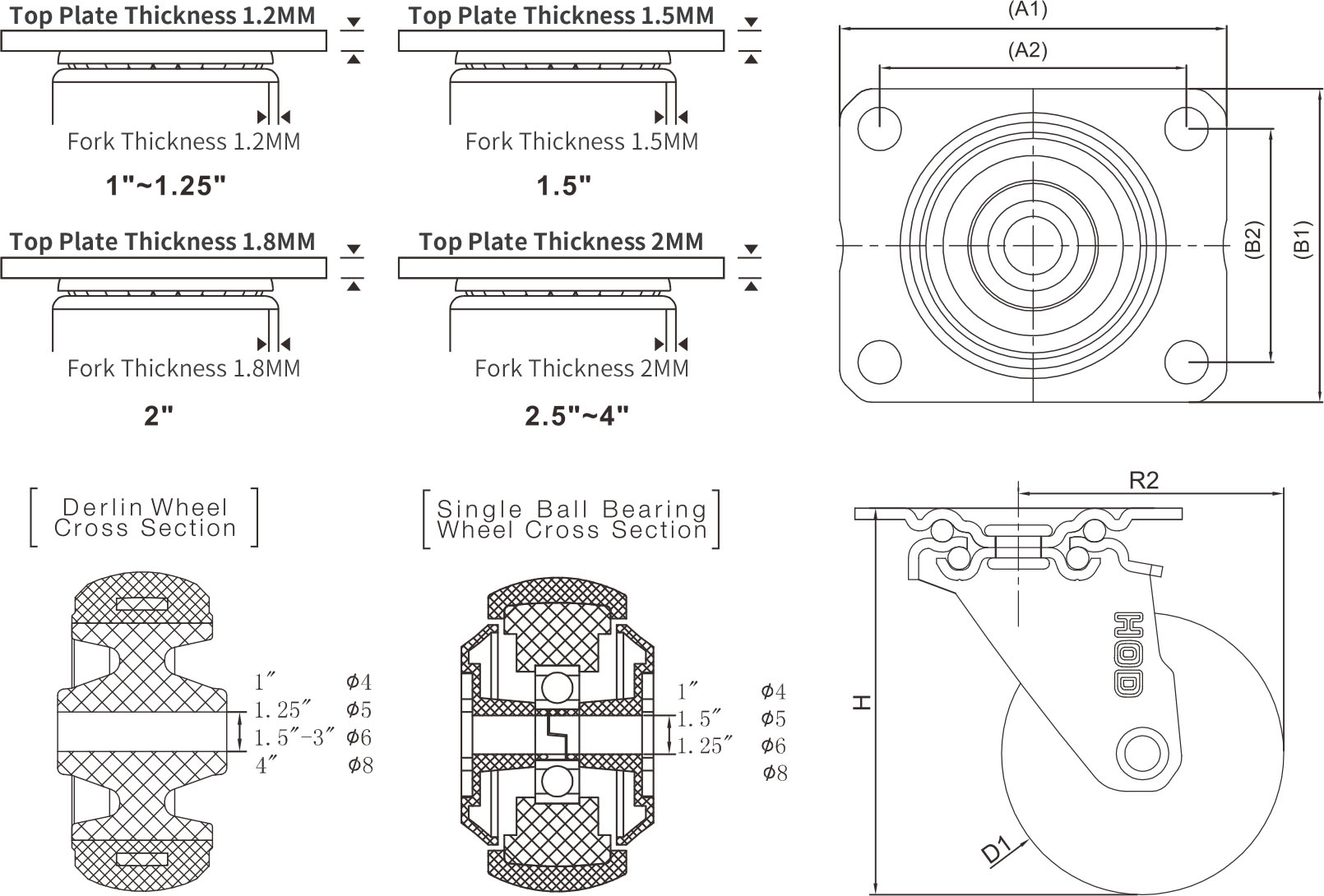

Structure Diagram

Structure Diagram

Caster Selection Guide
  • Floor Surfaces
  • Operating Conditions
Wheel Type Carpet Brick Concrete Linoleum Asphalt Sandy Land Wooden Board Flat Steel Rebar Ceramic Tile
Modified Nylon Wheel
Polypropylene Wheel
Plastic Core Nylon Wheel
High Temperature Nylon Wheel
Plastic Core Polyurethane Wheel
Iron Core Polyurethane
Aluminum Core Polyurethane
High Elastic Rubber Wheel
Foam Rubber Wheel
Pneumatic Wheel
Super Artificial Glue
Conductive Artificial Glue
Wheel Type Water Steam Chemical Grease Scrap Metal High Temp Low Temp Animal Oil Denoise Ground Protection Shock Absorption
Modified Nylon Wheel
Polypropylene Wheel
Plastic Core Nylon Wheel
High Temperature Nylon Wheel
Plastic Core Polyurethane Wheel
Iron Core Polyurethane
Aluminum Core Polyurethane
High Elastic Rubber Wheel
Foam Rubber Wheel
Pneumatic Wheel
Super Artificial Glue
Conductive Artificial Glue
Floor Surfaces
  • Modified Nylon Wheel

  • Polypropylene Wheel

  • Plastic Core Nylon Wheel

  • High Temperature Nylon Wheel

  • Plastic Core Polyurethane Wheel

  • Iron Core Polyurethane

  • Aluminum Core Polyurethane

  • High Elastic Rubber Wheel

  • Foam Rubber Wheel

  • Pneumatic Wheel

  • Super Artificial Glue

  • Conductive Artificial Glue

Operating Conditions
  • Modified Nylon Wheel

  • Polypropylene Wheel

  • Plastic Core Nylon Wheel

  • High Temperature Nylon Wheel

  • Plastic Core Polyurethane Wheel

  • Iron Core Polyurethane

  • Aluminum Core Polyurethane

  • High Elastic Rubber Wheel

  • Foam Rubber Wheel

  • Pneumatic Wheel

  • Super Artificial Glue

  • Conductive Artificial Glue
